Product Description
The double-layer tile pressing machine can produce two different specifications of tiles at the same time with its efficient production capacity, greatly shortening the production cycle and meeting the needs of rapid construction of industrial plants. Moreover, the tiles it produces are of reliable quality, with high dimensional accuracy after precise molding process, which can provide stable and durable roof covering for industrial plants and adapt to various climate and mechanical stresses that may be faced in industrial environments.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1000mm |
| Roller Stations | 18Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
Uncoilers play an indispensable role in the production process of tile presses. In the production process of tile presses, metal sheets are usually supplied in the form of coils, and the primary function of the uncoiler is to smoothly and steadily unwind these tightly wound metal sheets.
Hydraulic Pump Station
When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Feeding Table & Pre-Cutter
In the conveying process, the feeding table accurately controls the conveying speed and position of the plate, and works closely with the subsequent leveling device, forming equipment, etc. It feeds the plate into the leveling process at a stable speed, ensuring that the plate is in a good conveying state before being leveled, laying the foundation for high-quality leveling operations.
Shaft & Roller
The shaft is the supporting base of the roller, which keeps the roller in the correct position and posture to ensure that it can stably press and shape the plate. Multiple groups of rollers are installed on the frame of the tile press through the shaft. The accuracy and strength of the shaft directly affect the concentricity and stability of the roller, and thus affect the forming quality of the glazed tile.
Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The reliability and durability of the cutter are also important factors affecting production stability. Carefully designed and manufactured cutters can maintain good cutting performance in long-term, high-intensity working environments, reducing the frequency of downtime and replacement due to cutter wear and damage, thereby reducing production costs and improving the company's production efficiency.
|
|

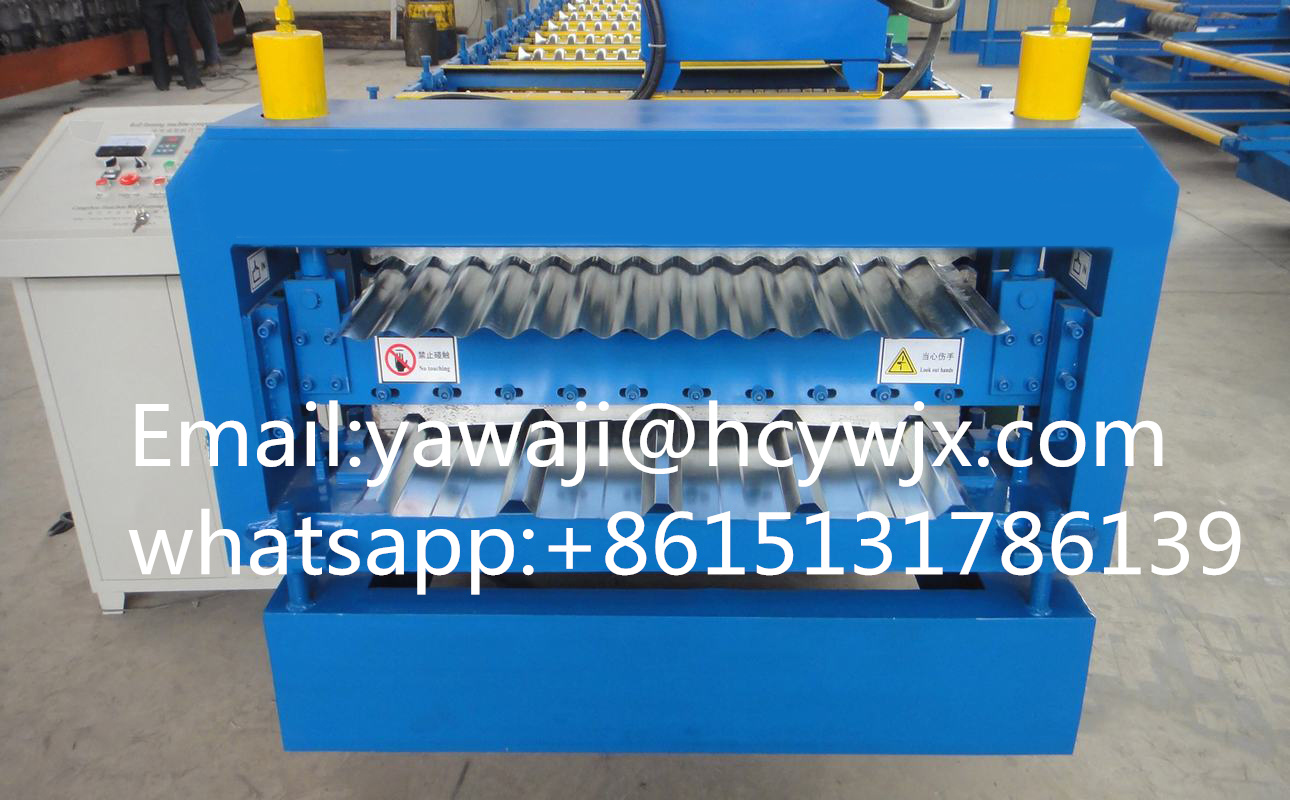

Nigeria Market Double Deck Roll Forming Machine Images
|
