Product Description
It is mainly used for the production of steel structure roof tiles and can be widely used in the roof construction of industrial plants, warehouses, gymnasiums, exhibition halls and other buildings.
Can be customized according to user requirements, can produce different specifications and models of trapezoidal single tile; The equipment is simple to operate, easy to use, and the professional skills of the operator are not required; High production efficiency, can produce a large number of trapezoidal single tile in a short time, to meet the market demand; With high quality materials and advanced manufacturing process, the equipment has strong stability, low failure rate and long service life.
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Product Parameters
| Material Type | PPGI/GI |
| Material Thickness | 0.3-0.6mm |
| Material Width | 1200mm |
| Roller Stations | 15Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15m/min |
| Total Power | 4+4KW |
| Voltage | 380V 50Hz 3Phases |
Component Function
5T Manual Decoiler
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Feeding Table & Pre-Cutter
Guide the coil come into the correct position and going to the roll forming part.
Also including a Hand Pull Cutting Device, it is convenient to pre-cut the coil when want to changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating.The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Solenoid valve brand: Huade
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.

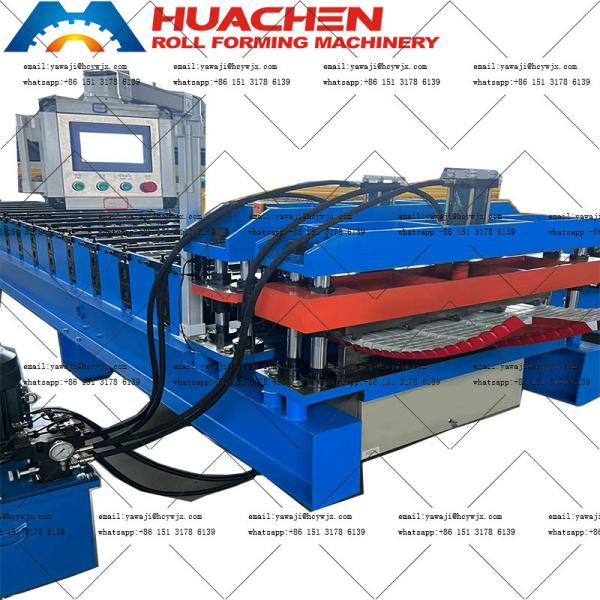

Pressing Section & Cutter
Output Table
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.
