Product Description
With its advanced technology, excellent performance and wide application fields, the floor deck forming machine has become an indispensable and important equipment in the modern construction industry. It not only provides strong support for the efficient construction of construction projects, but also makes important contributions to improving building quality and ensuring building safety.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.8-1.2mm |
| Width | 788mm |
| Roller Stations | 28Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ90mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15m/min |
| Control System | PLC Control |
| Total Power | 11+11+7.5KW |
| Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
his part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
(adjustable according to demand.)
In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.
Hydraulic Pump Station
The purpose of this pump station is to drive the cutter to start cutting works.
The hydraulic tank use 46# hydraulic oil.
Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
Output Table
This part is used to collect the formed products.
The bracket is equipped with rollers to facilitate the product forwarding without being scratched.

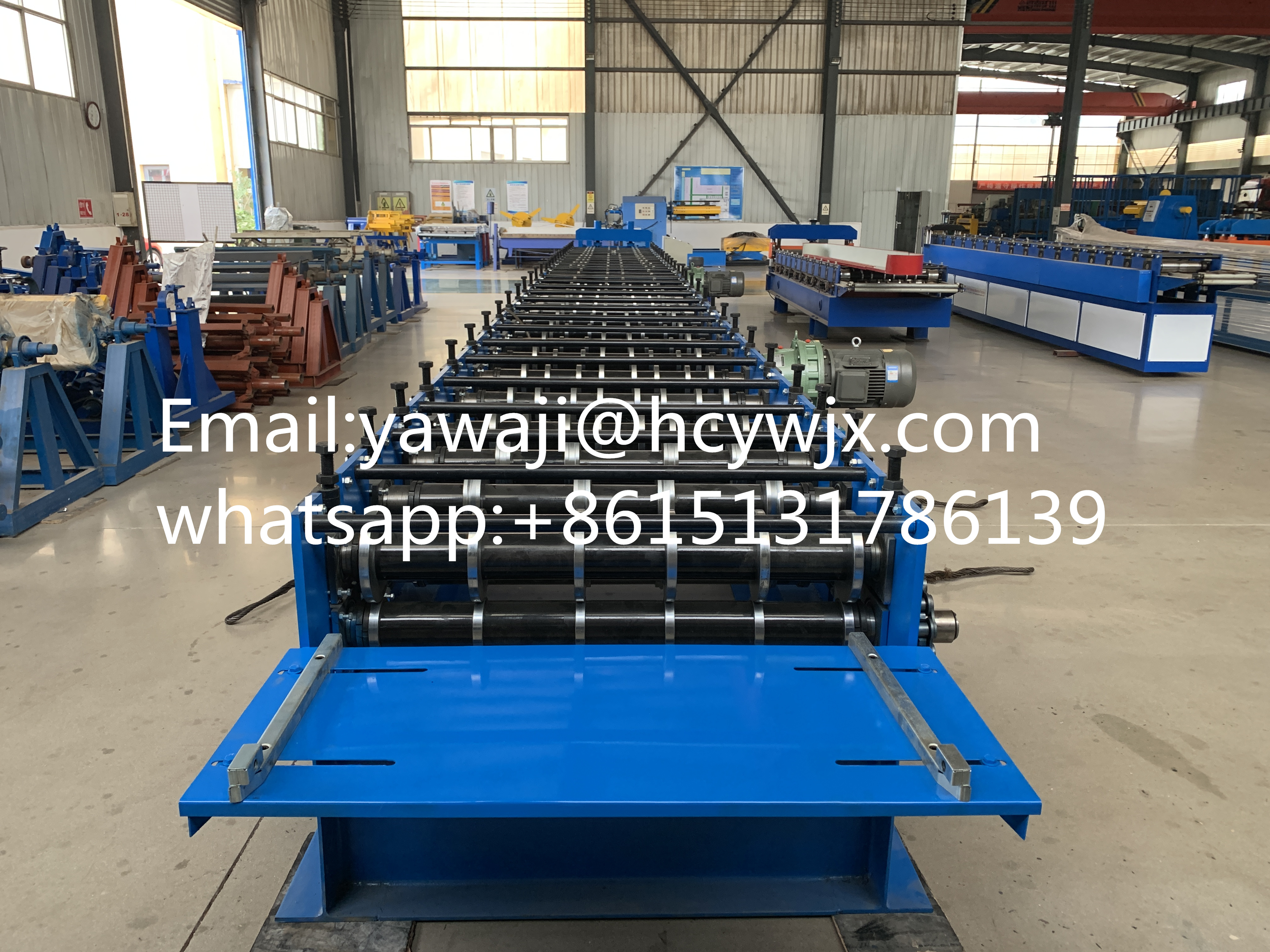

Feeding Table
Guide the coil come into the correct position and passed to the roll forming machine.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
The construction of public facilities such as stadiums, exhibition halls, and airport terminals has high requirements on the quality of building materials and construction progress. With its excellent performance, the floor decking forming machine provides a reliable floor decking solution for the construction of these public facilities.
