1250 Width Panel Glazed Tile Roll Forming Machine For Steel Construction

Brand Name : HC

Model Number : HC30

Certification : ISO

Place of Origin : Botou Hebei China

MOQ : 1set

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

type : Panel Glazed Tile Roll Forming Machine For Steel Construction

width : 1250

thickness : 0.3-0.6mm

capacity : 2-4m/min

Dimension : 7.5*1.5*1.2m

life time : 10 years

Weight : 6.5T

Contact Now

Panel Glazed Tile Roll Forming Machine For Steel Construction

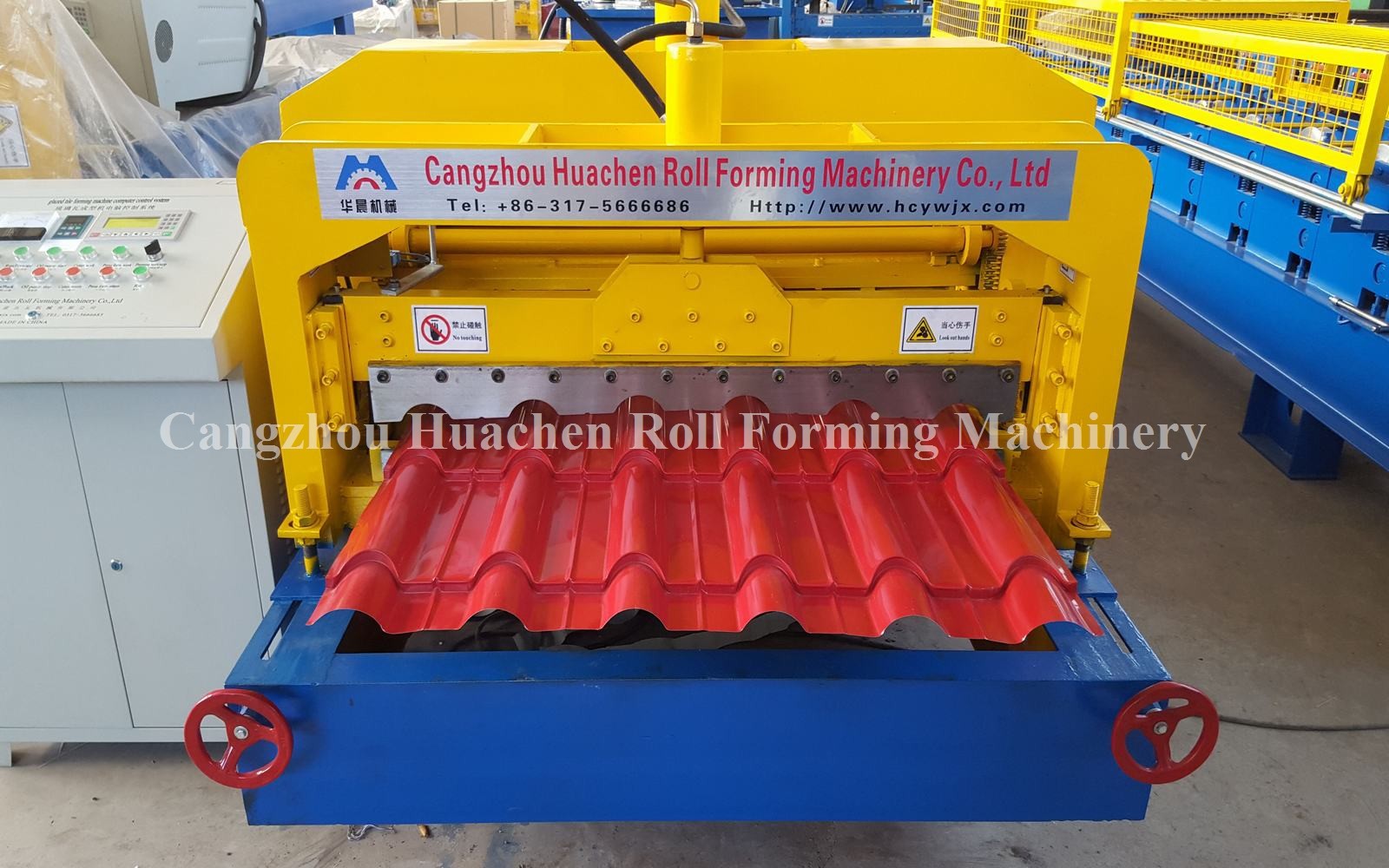

1250 Width Panel Glazed Tile Roll Forming Machine For Steel Construction

Product Description

1. The Product Description of Glazed tile roll forming machine

(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.

(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter

1250 Width Panel Glazed Tile Roll Forming Machine For Steel Construction

(3).Technical Detail

A. General

Suitable Material	HRB60 or equivalent
Material Thickness	0.2-0.6 mm
Dimension	About 7.21.31.1m(LWH) , as per the drawing
Length of the Sheet	You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm.
Cutting	Automatically stop and cutting when it comes to the set length.

B. Components Details

Roller Material	High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame	350# steel. More stable and no shaking.
Middle Plate	16mm. We use thicker plates to ensure stability of our products.
Forming Steps	11-16, according to the drawing.
Shaft Material	Φ70 mm, high grade 45# steel.
Shaft Material	Treating process: tempering- finish turning, high rigidity, hard to deform.
Cutting Blade Material	Cr12, hardness HRC60-62.
Cutting Blade Material	Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power	380V, 50 Hz, 3 phase or according to your need.
Screen	7 inch touch screen, easy to operate.
PLC	Delta DVP14ES
PLC	Well-adapted to various conditions, such as moisture, electromagnetic disturbance.
Frequency Converter	Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
Length Measurement Device	Omron, made in Japan.
Length Measurement Device	It features with high accuracy and stability.

2. More Pictures of Glazed tile roll forming machine

1250 Width Panel Glazed Tile Roll Forming Machine For Steel Construction

FAQ

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
