5.5KW Glazed Tile Roll Forming Machine , Roof Panel Forming Machine 0.3-0.8mm Thickness

Brand Name : HC

Model Number : HC26-210-1050

Certification : ISO/CE

Place of Origin : Botou Hebei China

MOQ : 1set

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

Roll material : 45# high grade steel

type : glazed tile roof sheet

control system : PLC control

raw material thickness : 0.3-0.6mm

Way Of Drive : 1.2 inch single chain

Shaft material : 45# high grade steel

Frame material : 300 H-high grade steel

Contact Now

1. Description:

This model of machine is exported to Euro market.The feeding width is 1250mm,and cover width is 1050,it is perfectly overlapped.Save material and out look is beautiful.The cutting device is different from the normal glazed roll forming machine,its curve cutting,cut the tile shape accordingly.

2. Competitive Advantage:

1. save space

2. easy installation

3. perfect service

4. excellent quality

5. Operate easily

5.5KW Glazed Tile Roll Forming Machine , Roof Panel Forming Machine 0.3-0.8mm Thickness

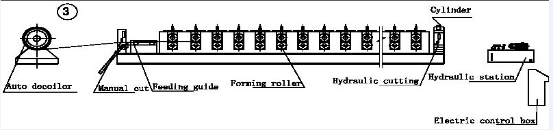

3. Flow chart

5.5KW Glazed Tile Roll Forming Machine , Roof Panel Forming Machine 0.3-0.8mm Thickness

4. Specification

NO.	ITEM		PARAMETER	NOTE
1	Suitable	Type	Pre-painted sheet,
	material		Galvanized sheet
			Galvanized Aluminum
		Width(mm)	1250mm
		Thickness(mm)	0.3-0.8mm
		Yield stress(mm)	Q235
2	Product	Detail as the attached file
2	specifications	Length	Any length
3	Power	Type	380v/3ph/50hz	Motor brand shanghai
		Main Motor power	7.5kw
	requirement	Main Motor power	7.5kw
4	Forming speed(m/min)		2-10m/min	Not include the time
4	Forming speed(m/min)		2-10m/min	of cutting
		Suitable coil OD(MM)	1250
	(Optional)	Suitable coil	508
		ID(MM)	508
6	Forming stand		12	Depend on actual design
7	Thickness of structure		16mm
8	Forming shaft diameter(mm)		70 solid
9	Type of cutting		Roll formed and length-set cutting
10	Control system		Panasonic PLC and inverter
11	Install dimension(depend on the final design)		9.3m×1.5m×1.2m	Without panel length
12	Total weight (Approx)		6T	Depend on final design

5. Applications:

	Our machine	Other company 's machine	Influence of the machine
Machine's base	High strength H350 / H400 steel. machine through milling macine after welding	H270 steel mark, after welding use manual polish	keep base in the same horizontal line, ensure product standard
Roller material	High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated	Normal No. 45 steel with Simple polished and have no coating	Roller will have longer use life and ensure the products have same size,no nick on the surface.
Side wall	Use high strength16mm thickness steel panel mark	Use 12 mm thickness steel panel mark	Ensure machine harder to deform, keep the product accurate and stable
Active shaft material	High grade solid No.45 carbon steel, Shaft diameter is 70mm. surface CNC polish treatmen	Normal No. 45 steel with no surface treatment	Improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard
Electrical elements	PLC control panel, transducer imported from Panasonic of Japan. Other elements from famous suppliers in China	All the elements are made in china	Machine become more accurate and more stable
Cutter blade	Cr12 mould steel with quenched treatment	Normal high strength steel without quenched treatment	Stable the integrated mechanic feature of the cutter blade,harder to deform, longer blade's life, ensure product standard
